A dryer thermal fuse replacement takes 15 to 30 minutes and costs $5 to $20 in parts. However, a new fuse only lasts if you also fix the reason the old one blew. Our Service King LLC technicians use this exact process on dryers across Bridgeport and Fairfield County.
Time: 15–30 minutes | Part cost: $5–$20 | Difficulty: Easy | Tools: 1/4-inch nut driver, multimeter
What Does a Dryer Thermal Fuse Do?
The thermal fuse is a one-time safety device that shuts the dryer down when the air inside gets too hot. Once it blows, you cannot reset it; you must replace it.
- Most electric Whirlpool, Kenmore, and Maytag dryers: the fuse cuts power to the motor, so the dryer will not start.
- Gas dryers and many Samsung and LG models: the fuse cuts the heat, so the drum turns but stays cold.
How Do I Know If My Dryer Thermal Fuse Is Blown?
- The dryer does not start, but the control panel lights up.
- The drum spins, but the air stays cold.
- Clothes come out damp after a full cycle.
- The dryer felt unusually hot or smelled like burning lint before it stopped.
A bad door switch or belt causes similar signs, so confirm with the multimeter test in Step 3.

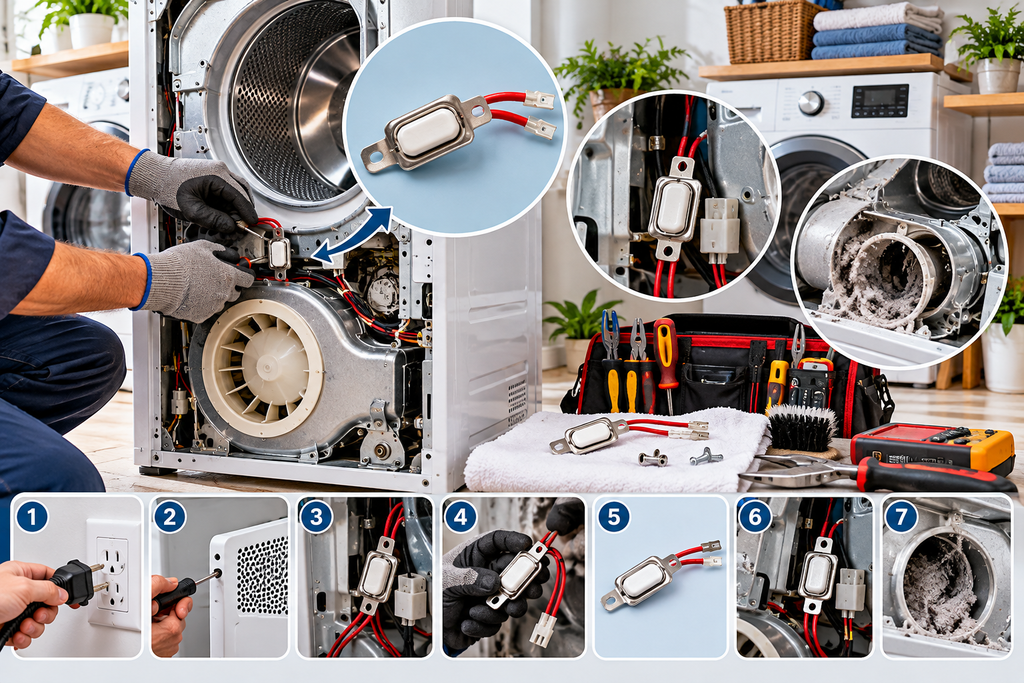

Step 1: Disconnect the Power and Gas
Unplug the dryer or switch off its breaker. On a gas dryer, also close the gas valve behind the unit. Wear work gloves, because the sheet-metal panels have sharp edges.
Step 2: Find the Thermal Fuse
Pull the dryer from the wall and remove the back panel with a 1/4-inch nut driver. Many GE models open from the top or front instead.
Look for a small part, 1 to 2 inches long, with two wires attached, usually on the blower or heater housing. Your model number, printed inside the door frame, shows the exact location on the manufacturer’s parts diagram.
Step 3: Test the Fuse With a Multimeter
- Take a photo of the wiring for reference.
- Pull the connectors, not the wires, off the fuse terminals.
- Set the multimeter to its lowest ohms (Ω) setting.
- Touch one probe to each terminal.
A reading near 0 ohms means the fuse works. A reading of OL or infinity means the fuse has blown.

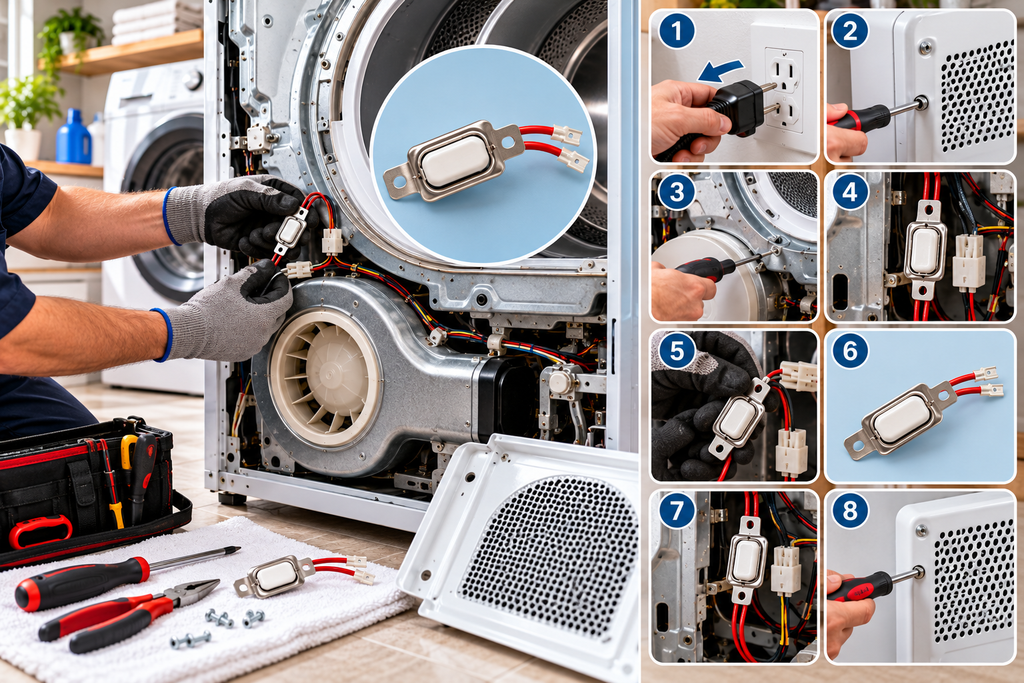

Step 4: Replace the Thermal Fuse
- Remove the mounting screw and take out the old fuse.
- Install a new OEM fuse that matches your dryer’s part number.
- Push the wires back on; on two-wire fuses, either wire fits either terminal.
- Vacuum lint from the cabinet and blower housing while the panel is off.
- Reinstall the panel, restore power, and turn the gas back on if your dryer uses it.
Step 5: Fix the Cause Before You Run the Dryer
A thermal fuse rarely fails on its own. Overheating blew it, and the same problem will blow the new one. Check these causes:
| Cause | What to look for | What to do |
|---|---|---|
| Clogged exhaust vent | Long drying times, a hot laundry room | Clean the vent run to the outside wall |
| Crushed or plastic foil duct | Kinks behind the dryer | Replace it with rigid or semi-rigid metal duct |
| Stuck outdoor vent flap | The flap stays closed while the dryer runs | Clear lint, nests, or ice from the flap |
| Failed cycling thermostat | Very hot on every setting | Test and replace the thermostat |
| Shorted heating element | Heat even on “air only” | Replace the element |
If a new fuse blows after you clean the vent, suspect the thermostat or heating element.
Never Bypass a Dryer Thermal Fuse
Never jump the fuse with a wire. The fuse is the backup safety device that shuts down an overheating dryer before it catches fire.
According to the U.S. Fire Administration, clothes dryers cause about 2,900 home fires each year. Failure to clean them is the leading cause, at 34%. The National Fire Protection Association recommends these habits:
- Clean the lint filter before or after every load.
- Clean the exhaust vent at least once a year.
- Never run the dryer when you leave home or go to bed.
When to Call a Dryer Repair Technician
Call a professional if any of these apply:
- The new fuse blows again within a few loads.
- You smell gas or burning, or you see scorch marks.
- The fuse tests fine, but the dryer still will not start or heat.
Service King LLC brings more than 15 years of dryer repair experience across all major brands. Our certified technicians replace the fuse, find the root cause, and check the vent so the repair lasts. We offer same-day appliance repair, upfront quotes, and a warranty on every job.
See our dryer repair services, call 203-904-8850, or book online for appliance repair in Bridgeport, CT.
Dryer Thermal Fuse FAQs
How do I know if my dryer thermal fuse is blown? The dryer will not start or runs without heat, and a multimeter reads OL or infinity across the fuse terminals.
How much does it cost to replace a thermal fuse on a dryer? The part usually costs $5 to $20. A professional repair also finds and fixes the cause of overheating, and Service King quotes the price upfront.
Are thermal fuses universal for dryers? No. Fuses differ in temperature rating, shape, and mounting. A fuse with the wrong rating can blow early or fail to protect the dryer, so buy the OEM part that matches your model number.
How hard is it to replace a thermal fuse on a dryer? It is a beginner-level repair. Most people finish in 15 to 30 minutes with a 1/4-inch nut driver and a multimeter. Models that need front-panel or drum removal take longer.
Why does my dryer keep blowing thermal fuses? A clogged vent, a crushed duct, a failed cycling thermostat, or a shorted heating element makes the dryer overheat and blow the fuse again.
